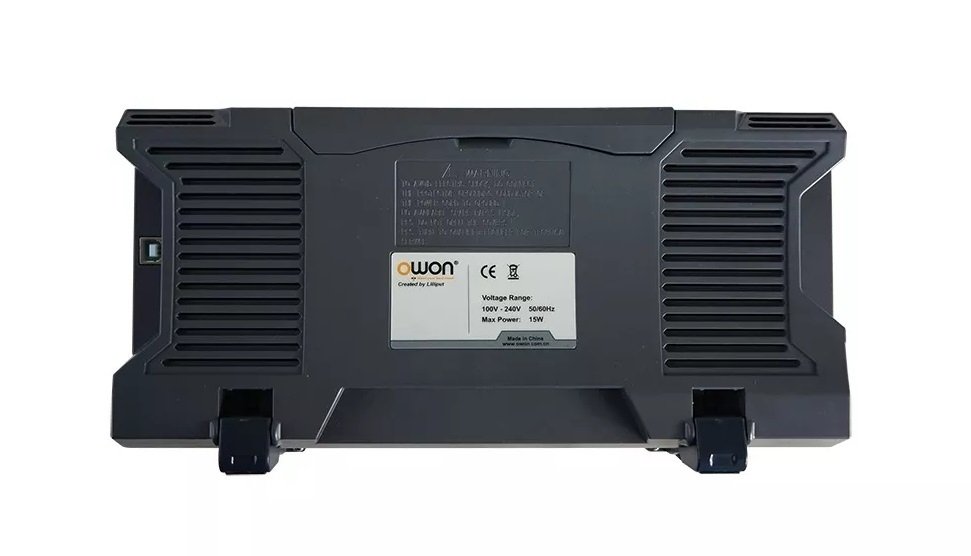

Osciloscopio Digital SDS1052 Owon 2 Canales 50 Mhz
CARACTERÍSTICAS PRINCIPALES
- Osciloscopio de Almacenamiento Digital
- Ancho de banda: 50MHz
- 2 canales
- Frecuencia de muestreo: 500MS/s

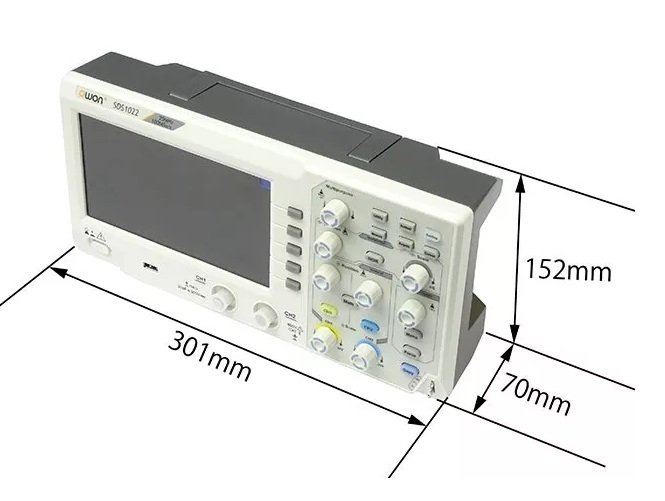

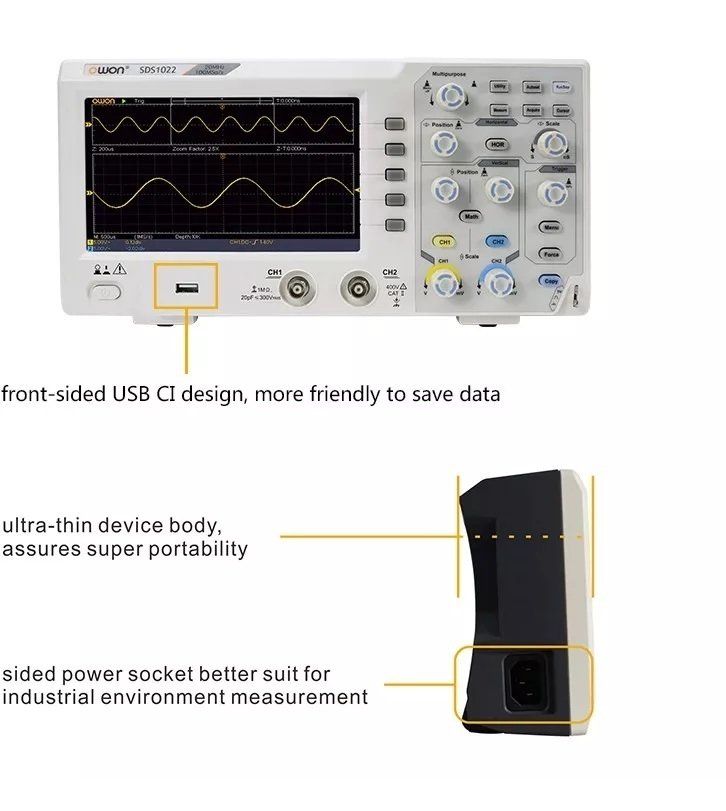

- Diseño ultrafino
- LCD de alta resolución de 7 pulgadas
- SCPI y LabVIEW soportados
ESPECIFICACIONES TÉCNICAS
– Bandwidth 50MHz
– Sample Rate 500MS/s
– Horizontal Scale (s/div) 2ns/div – 1000s/div, step by 1 – 2 – 5
– Rise Time (at input, typical) =17.5ns
– Channel 2
– Display 7" color LCD, 800 x 480 pixels
– Input Impedance 1MO : 2%, in parallel with 20pF : 5pF
– Channel Isolation 50Hz : 100 : 1, 10MHz : 40 : 1
– Max Input Voltage 400V (PK – PK) (DC+AC, PK – PK)
– DC Gain Accuracy :3%
– Record Length 10K
– DC Accuracy (average) Average=16:±(3% reading + 0.05 div) for ¿V
– Probe Attenuation Factor 1X, 10X, 100X, 1000X
– LF Respond (AC, -3dB) =10Hz (at input, AC coupling, -3dB)
– Sample Rate / Relay Time
– Accuracy : 100ppm
– Interpolation sin (x) / x
– Interval (DeltaT) Accuracy
– (full bandwidth)
– Single : (1 interval time + 100ppm x reading + 0.6ns),
– Average=16:±(3% reading + 0.05 div) for ¿V
– Input Coupling DC, AC , and GND
– Vertical Resolution (A/D) 8 bits (2 channels simultaneously)
– Vertical Sensitivity 5mV/div – 5V/div (at input)
– Trigger Type Edge, Video
– Trigger Mode Auto, Normal, and Single
– Trigger Level :5 divisions from screen center
– Line / Field Frequency (video) NTSC, PAL and SECAM standard
– Cursor Measurement ¿V, and ¿T between cursors
INCLUYE
– Cable de alimentación
– Cable USB
– CD Rom con el software
– Manual de usuario en español
– 2 Puntas de prueba x1: x10
